Spotlight on Equalizer’s Unique Secure-Grip Bolt Hole Flange Spreaders
05/11/2017 in Equalizer International, Flange Spreaders, Maintenance
Tool Rentals from Enerteq Solutions for
TURNAROUNDS and MAJOR MAINTENANCE
Spotlight on Equalizer's Unique Secure-Grip Bolt Hole Flange Spreaders
Available in Mechanical, Hydraulic and In-line Styles
The Secure-Grip Flange Spreader Line spreads flanges with little or no access gap, and are also ideal when obstructions, such as the change out of blinds or butterfly valves are involved.
When used in pairs, as recommended, Secure-Grip Spreaders will produce from 7.4T to 50T of spreading force.

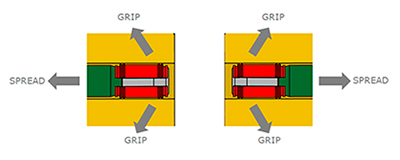

By employing the innovative expanding bolt hole collet system, the collets expand and grip the inner walls of the bolt holes and are able to "pull" open flange joints from the outside of flange joints through the cantilevering action of the outer arms of the Mechanical and Hydraulic spreaders.

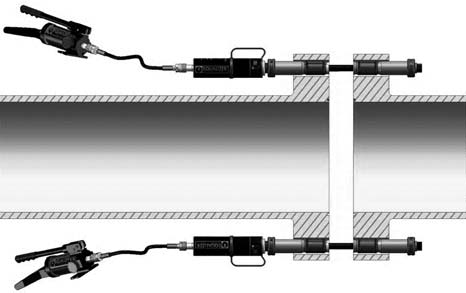

The In-line Hydraulic spreaders, use a rod and piston arrangement, in conjunction with expanding collets, to spread joints. These low-profile tools are ideal for applications with clearance issues and for flanges with bolt hole that are from 2 3/" to 2 3/4" in diameter.
| MECHANICAL | HYDRAULIC | IN-LINE HYDRAULIC | ||||
| SG4TM | SG6TM | SG11TM | SG13TE | SG15TE | SG18TE | SG25TE |
| Spreading Force / Pair | ||||||
| 7.4 T | 12 T | 22 T | 26 T | 30 T | 36 T | 50 T |
| Standard Collet Sizes | ||||||
|
5/8" 3/4" |
7/8" 1" |
1 1/8" 1 1/4" 1 3/8" |
1 1/ 2" 1 5 /8" 1 3/4" |
1 7/8 " 2" 2 1/4 " |
2 3/8" 2 1/2" 2 3/4" |
3" 3 1/4" 3 3/8" 3 1/2" 3 3/4" 4" |
Expanding collets are available in several sizes per tool, plus custom sizing.
Customized Tooling Packages • Tool Technicians
Enerteq makes it easy for the planning and execution of large to small jobs and projects.
Contact Eric Santos or Bululu Ngokwey to plan your next project.
713-931-1840 Sales@EnerteqSolutions.com
Click here to learn more about the tools available on Enerteq's rental page.
